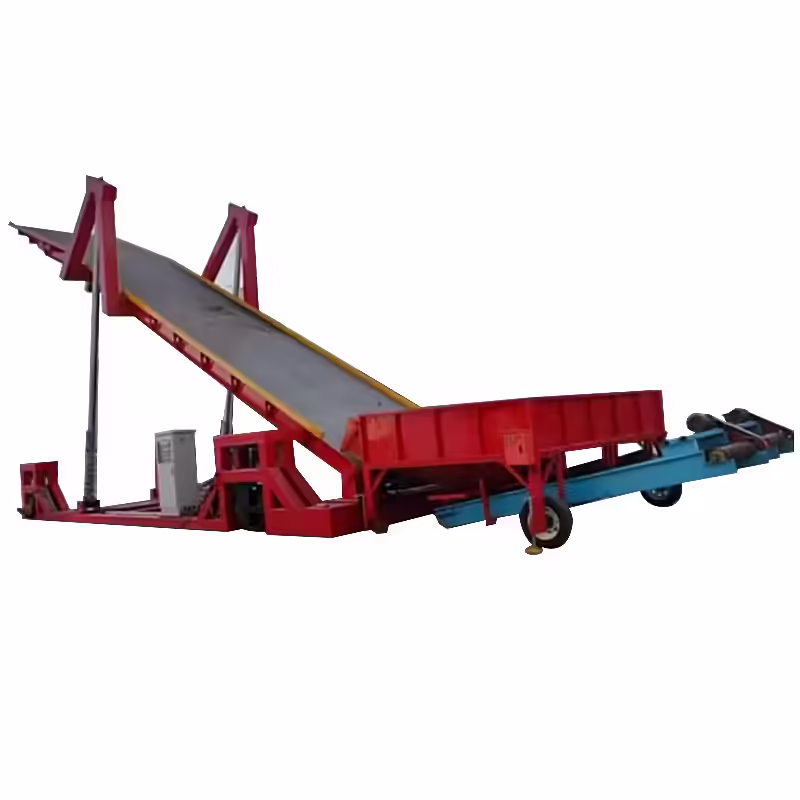

The effective width of the tilting platform exceeds 3 meters, and the effective length meets the unloading requirements for vehicles with a center distance between front and rear wheels not exceeding 13 meters. The mobile platform adopts an inclined layout, with a tilt angle of less than 5° for convenient vehicle reversing. The fixed platform with foundation adopts a horizontal layout.
② The tilting lifting capacity ranges from 80 to 120 tons, and the platform can stop at any angle within the range of 0 to 45 degrees.
③ The mobile equipment offers two driving modes for user selection: one is hydraulic automatic walking, and the other is forklift towing.
④ The wheel-blocking mechanism is equipped with an interlock switch, ensuring that the main hydraulic cylinder can only rise after the wheel stopper is fully lifted.
⑤ It is ensured that the maximum deformation of the tilting platform is less than 25mm in both the horizontal position and at various operating angles.
⑥ The mobile type is equipped with a conveyor with a conveying capacity of no less than 150 cubic meters per hour, and the hopper capacity of the storage bin is no less than 15 cubic meters.
⑦ The paint color on the equipment surface can be specified by the buyer. If not specified, it will follow the supplier’s standard product color.
